Build your deck with Anzor's Stainless Steel Decking Screws

Last Updated: 27/11/24 at 3:51pm

We’re ready for decking season with millions of decking screws now in stock! Our screws are made from 316 Stainless Steel and come in many finishes and styles. Be ready for summer and get your screws today!

Note: Stainless fasteners embedded in some high tannin timbers such as Garapa may cause localised tannin stains on the surface of the timber.

2861c900 8926 4bd4 80fa 1eb2840ead84 New Nz Decking Screws Stainles Steel 2023v2

Also available Timber Construction Screw with European Technical Assessment (ETA).

Great for landscaping and commercial boardwalks/decks
Screw sizes up to 10mm x 280mm

Stainless Steel Timber Construction Screws

Stainless Steel Screw Options for Decking

Self-Drill

Type	Applications	Advantages	Tips for Use
Spear Tip Decking Screw 316, Star Drive, Self Drilling Code: SSTCKCG0... M5 x 55mm - Qty: 500 screws per pail M5 x 70mm - also available in Bronze Finish - Qty: 500 screws per pail	Commonly used for hardwood up to 21mm thick.	The highest performing self-drilling screw. Star Drive allows for greater torque. Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look. Pre-drilling generally not required depending on timber and driver (except on board ends).	Use T20 Max Torsion tip to drive screw. Pre-drilling at board ends is recommended.
Hardwood Decking Screw 316, Star Drive, Self Drilling CODE: SSTCKCG12... 12G x 50mm - Qty: 1,000 screws per pail 12G x 65mm - also available in Bronze Finish - Qty: 700 screws per pail	Commonly used for hardwood up to 21mm thick.	Star Drive allows for greater torque. Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look. Pre-drilling generally not required depending on timber and driver.	Use T20 Max Torsion tip to drive screw. Pre-drilling at board ends is required.
Cylinder Head Spear Tip Decking Screw 316, Star Drive CODE: SSTCKC6G1... 10G x 60mm - Qty: 1,000 screws per pail 10G x 75mm - Qty: 1,000 screws per pail	Commonly used for hardwood up to 21mm thick.	Star drive allows for greater torque. Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look. Pre-drilling generally not required depending on timber and driver.	Use T15 Max Torsion tip to drive screw. Pre-drilling at board ends is required.
Cylinder Head S2 Decking Screw 316, Star Drive CODE: SSTCKCS2... 12G x 50mm - Qty: 1,000 screws per pail 12G x 60mm - Qty: 1,000 screws per pail 12G x 70mm - Qty: 500 screws per pail 12G x 80mm - Qty: 500 screws per pail Bronze Finish & Black Coating available on certain sizes	Commonly Used for Hardwood up to 21mm thick and also composite decking	Star drive allows for greater torque. Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look. Pre-drilling generally not required depending on timber and driver.	Use T20 Max Torsion tip to drive screw.

Type

Applications

Advantages

Tips for Use

Spear Tip Decking Screw 316, Star Drive, Self Drilling

Code: SSTCKCG0...

M5 x 55mm
- Qty: 500 screws per pail
M5 x 70mm
- also available in Bronze Finish
- Qty: 500 screws per pail

Commonly used for hardwood up to 21mm thick.

The highest performing self-drilling screw.

Star Drive allows for greater torque.

Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.

Pre-drilling generally not required depending on timber and driver (except on board ends).

Use T20 Max Torsion tip to drive screw.

Pre-drilling at board ends is recommended.

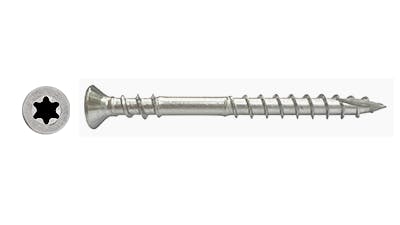

Hardwood Decking Screw 316, Star Drive, Self Drilling

CODE: SSTCKCG12...

12G x 50mm
- Qty: 1,000 screws per pail
12G x 65mm
- also available in Bronze Finish
- Qty: 700 screws per pail

Commonly used for hardwood up to 21mm thick.

Star Drive allows for greater torque.

Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.

Pre-drilling generally not required depending on timber and driver.

Use T20 Max Torsion tip to drive screw.

Pre-drilling at board ends is required.

Cylinder Head Spear Tip Decking Screw 316, Star Drive

CODE: SSTCKC6G1...

10G x 60mm
- Qty: 1,000 screws per pail
10G x 75mm
- Qty: 1,000 screws per pail

Commonly used for hardwood up to 21mm thick.

Star drive allows for greater torque.

Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.

Pre-drilling generally not required depending on timber and driver.

Use T15 Max Torsion tip to drive screw.

Pre-drilling at board ends is required.

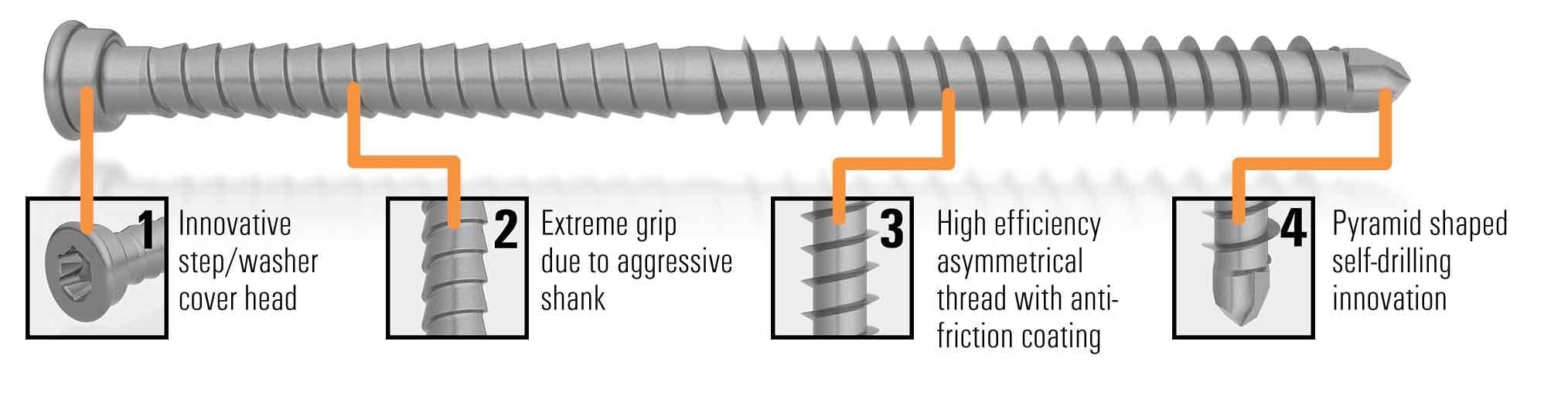

Cylinder Head S2 Decking Screw 316, Star Drive

CODE: SSTCKCS2...

12G x 50mm
- Qty: 1,000 screws per pail
12G x 60mm
- Qty: 1,000 screws per pail
12G x 70mm
- Qty: 500 screws per pail
12G x 80mm
- Qty: 500 screws per pail
Bronze Finish & Black Coating available on certain sizes

Commonly Used for Hardwood up to 21mm thick and also composite decking

Star drive allows for greater torque.

Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.

Pre-drilling generally not required depending on timber and driver.

Use T20 Max Torsion tip to drive screw.

Pre-Drill

Type	Applications	Advantages	Tips for Use
Hardwood Decking Screw 316, Star Drive, T17 Tip Code: SSTCKCG12... 12G x 50mm - Qty: 1,000 screws per pail 12G x 65mm - Qty: 700 screws per pail	Commonly used for hardwood up to 21mm thick.	Pre-drilling is required but this means driving in the screws is easier on tools and gives a longer battery life than the self drilling type. Star Drive allows for greater torque. Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.	Use T20 Max Torsion tip to drive screw.
Coarse Thread Screws, Star Drive, 316, Csk Ribbed, T17 Tip CODE: SSTCKCPR6G... 10G x 38mm 10G x 50mm 10G x 65mm 10G x 75mm 10G x 100mm	Commonly used for both soft and hardwood decking up to 21mm thick.	Flush finish. Star Drive allows for greater torque. Smaller head diameter. Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.	Use 10g Quick Cut for counter sinking/drilling pilot hole. T25 High Torque tip to drive screw. Pre-drilling may be required and recommended for hardwood and board ends.
Wide Board Decking Screw 316, Csk Ribbed, Socket Drive/Star Drive, Square Thread CODE: SSTCKCP6G... 12G x 65mm - also available in Bronze Finish - Qty: 500 screws per pail 12G x 80mm - Qty: 400 screws per pail 12G x 100mm - Qty: 400 screws per pail	Commonly used for soft and hardwood wide board decking up to 30 mm thick.	Flush finish. Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look. Square profile threads require less torque to drive in screws. Larger head to reduce pull-through on larger softwood boards which may experience more movement.	Use Quick Cut for counter sinking/ drilling pilot hole. Use 4mm Max Torsion tip to drive screw. Pre-drilling may be required and recommended for hardwood and board ends.
Cylinder Head Combo Thread Decking Screw 316, Star Drive CODE: SSTCKCET... M5.5 x 70mm - Qty: 700 screws per pail	Commonly used for hardwood up to 21mm thick.	Pre-drilling is required but this means driving in the screws is easier on tools and gives a longer battery life than the self drilling type. Star drive allows for greater torque. Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.	Use T20 Max Torsion tip to drive screw. Pre-drilling at board ends is required.
Ream Shank Decking Screw 316, Star Drive CODE: SSTCKC6G0... M5 x 60mm - Qty: 1,000 screws per pail M5 x 70mm - Qty: 1,000 screws per pail	Commonly used for hardwood up to 21mm thick.	Pre-drilling is required but this means driving in the screws is easier on tools and gives a longer battery life than the self drilling type. Star drive allows for greater torque. Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.	Use T25 Max Torsion tip to drive screw.
Bugle Batten Screw 316, Socket Drive, Ribbed, T17 Tip CODE: SSTCKCE6G14... 14G x 50mm - Qty: 500 screws per pail 14G x 75mm - Qty: 400 screws per pail 14G x 90mm - Qty: 250 screws per pail 14G x 100mm - Qty: 250 screws per pail 14G x 125mm - Qty: 200 screws per pail 14G x 150mm - Qty: 200 screws per pail 14G x 180mm - Qty: 100 screws per pail 14G x 200mm - Qty: 100 screws per pail	Commonly used for both soft and hardwood wide board decking up to 65mm thick.	Flush finish. Heavy duty screw with an industrial look. High pull out loads. Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.	Use Quick Cut for counter sinking/drilling pilot hole. 5mm Max Torsion tip to drive screw. Pre-drilling may be required and recommended for hardwood and board ends.

Type

Applications

Advantages

Tips for Use

Hardwood Decking Screw 316, Star Drive, T17 Tip

Code: SSTCKCG12...

12G x 50mm
- Qty: 1,000 screws per pail
12G x 65mm
- Qty: 700 screws per pail

Commonly used for hardwood up to 21mm thick.

Pre-drilling is required but this means driving in the screws is easier on tools and gives a longer battery life than the self drilling type.

Star Drive allows for greater torque.

Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.

Use T20 Max Torsion tip to drive screw.

Coarse Thread Screws, Star Drive, 316, Csk Ribbed, T17 Tip

CODE: SSTCKCPR6G...

10G x 38mm
10G x 50mm
10G x 65mm
10G x 75mm
10G x 100mm

Commonly used for both soft and hardwood decking up to 21mm thick.

Flush finish.

Star Drive allows for greater torque.

Smaller head diameter.

Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.

Use 10g Quick Cut for counter sinking/drilling pilot hole.

T25 High Torque tip to drive screw.

Pre-drilling may be required and recommended for hardwood and board ends.

Wide Board Decking Screw 316, Csk Ribbed, Socket Drive/Star Drive, Square Thread

CODE: SSTCKCP6G...

12G x 65mm
- also available in Bronze Finish
- Qty: 500 screws per pail
12G x 80mm
- Qty: 400 screws per pail
12G x 100mm
- Qty: 400 screws per pail

Commonly used for soft and hardwood wide board decking up to 30 mm thick.

Flush finish.

Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.

Square profile threads require less torque to drive in screws.

Larger head to reduce pull-through on larger softwood boards which may experience more movement.

Use Quick Cut for counter sinking/ drilling pilot hole.

Use 4mm Max Torsion tip to drive screw.

Pre-drilling may be required and recommended for hardwood and board ends.

Cylinder Head Combo Thread Decking Screw 316, Star Drive

CODE: SSTCKCET...

M5.5 x 70mm
- Qty: 700 screws per pail

Commonly used for hardwood up to 21mm thick.

Pre-drilling is required but this means driving in the screws is easier on tools and gives a longer battery life than the self drilling type.

Star drive allows for greater torque.

Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.

Use T20 Max Torsion tip to drive screw.

Pre-drilling at board ends is required.

Ream Shank Decking Screw 316, Star Drive

CODE: SSTCKC6G0...

M5 x 60mm
- Qty: 1,000 screws per pail
M5 x 70mm
- Qty: 1,000 screws per pail

Commonly used for hardwood up to 21mm thick.

Pre-drilling is required but this means driving in the screws is easier on tools and gives a longer battery life than the self drilling type.

Star drive allows for greater torque.

Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.

Use T25 Max Torsion tip to drive screw.

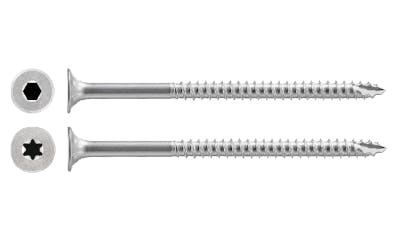

Bugle Batten Screw 316, Socket Drive, Ribbed, T17 Tip

CODE: SSTCKCE6G14...

14G x 50mm
- Qty: 500 screws per pail
14G x 75mm
- Qty: 400 screws per pail
14G x 90mm
- Qty: 250 screws per pail
14G x 100mm
- Qty: 250 screws per pail
14G x 125mm
- Qty: 200 screws per pail
14G x 150mm
- Qty: 200 screws per pail
14G x 180mm
- Qty: 100 screws per pail
14G x 200mm
- Qty: 100 screws per pail

Commonly used for both soft and hardwood wide board decking up to 65mm thick.

Flush finish.

Heavy duty screw with an industrial look.

High pull out loads.

Heads look uniform across screws, unlike Square Drive heads which need to be lined up to achieve a uniform look.

Use Quick Cut for counter sinking/drilling pilot hole.

5mm Max Torsion tip to drive screw.

Pre-drilling may be required and recommended for hardwood and board ends.

Timber to Metal

Type	Applications	Advantages	Tips for Use
TTM (Timber to Metal) S2 Decking Screw 316, Star Drive Code: SSTCKCS... 12G x 45mm - Qty: 100 screws per pail	Self- drill decking screw. Timber thickness up to 26mm Steel under construction 1.25-3mm.	316 stainless steel with additional zinc coated steel tip offers a high degree of weather resistance. Self drilling tip makes the installation quick and easy. Small head diameter ensures that the head can sink in cleanly and easily. Smooth head for a perfect barefoot proof finish.	Use T20 Max Torsion tip to drive screw.
TTA (Timber to Aluminium) S2 Decking Screw 316, Star Drive CODE: SSTCKCS... 12G x 45mm 12G x 70mm - Qty: 100 screws per pail	Self- drill decking screw. Timber thickness up to 26mm Steel under construction 1.25-3mm.	316 stainless steel. Timber is protected from tearing or splitting by the drill tip. Self drilling tip for easy and quick installation.	Use T20 Max Torsion tip to drive screw.

Type

Applications

Advantages

Tips for Use

TTM (Timber to Metal) S2 Decking Screw 316, Star Drive

Code: SSTCKCS...

12G x 45mm
- Qty: 100 screws per pail

Self- drill decking screw.

Timber thickness up to 26mm

Steel under construction 1.25-3mm.

316 stainless steel with additional zinc coated steel tip offers a high degree of weather resistance.

Self drilling tip makes the installation quick and easy.

Small head diameter ensures that the head can sink in cleanly and easily.

Smooth head for a perfect barefoot proof finish.

Use T20 Max Torsion tip to drive screw.

TTA (Timber to Aluminium) S2 Decking Screw 316, Star Drive

CODE: SSTCKCS...

12G x 45mm
12G x 70mm
- Qty: 100 screws per pail

Self- drill decking screw.

Timber thickness up to 26mm

Steel under construction 1.25-3mm.

316 stainless steel.

Timber is protected from tearing or splitting by the drill tip. Self drilling tip for easy and quick installation.

Use T20 Max Torsion tip to drive screw.

Stainless steel fasteners embedded in some high tannin timbers such as Garapa may cause localised tannin stains on the surface of the timber. This risk is reduced by using 316 stainless steel screws (and not 304 stainless steel) and using un-coloured screws (not bronze or black stainless steel options).

Bronze finish is a 'vintage' look and may wear off when installed in high traffic areas, cleaned with abrasive methods or damaged during installation.

This information is a guide, and the decision of which product to use and how to install it is the customer's decision, with them taking into account all the specific factors of the situation e.g. timber type, environment, etc. Anzor does not accept liability for the application of this information.
