Anzor’s wire balustrade system offers an elegant, versatile infill solution for both timber and metal frames. Our specially developed eyelets are low profile, providing a clean aesthetic and are easy to install.

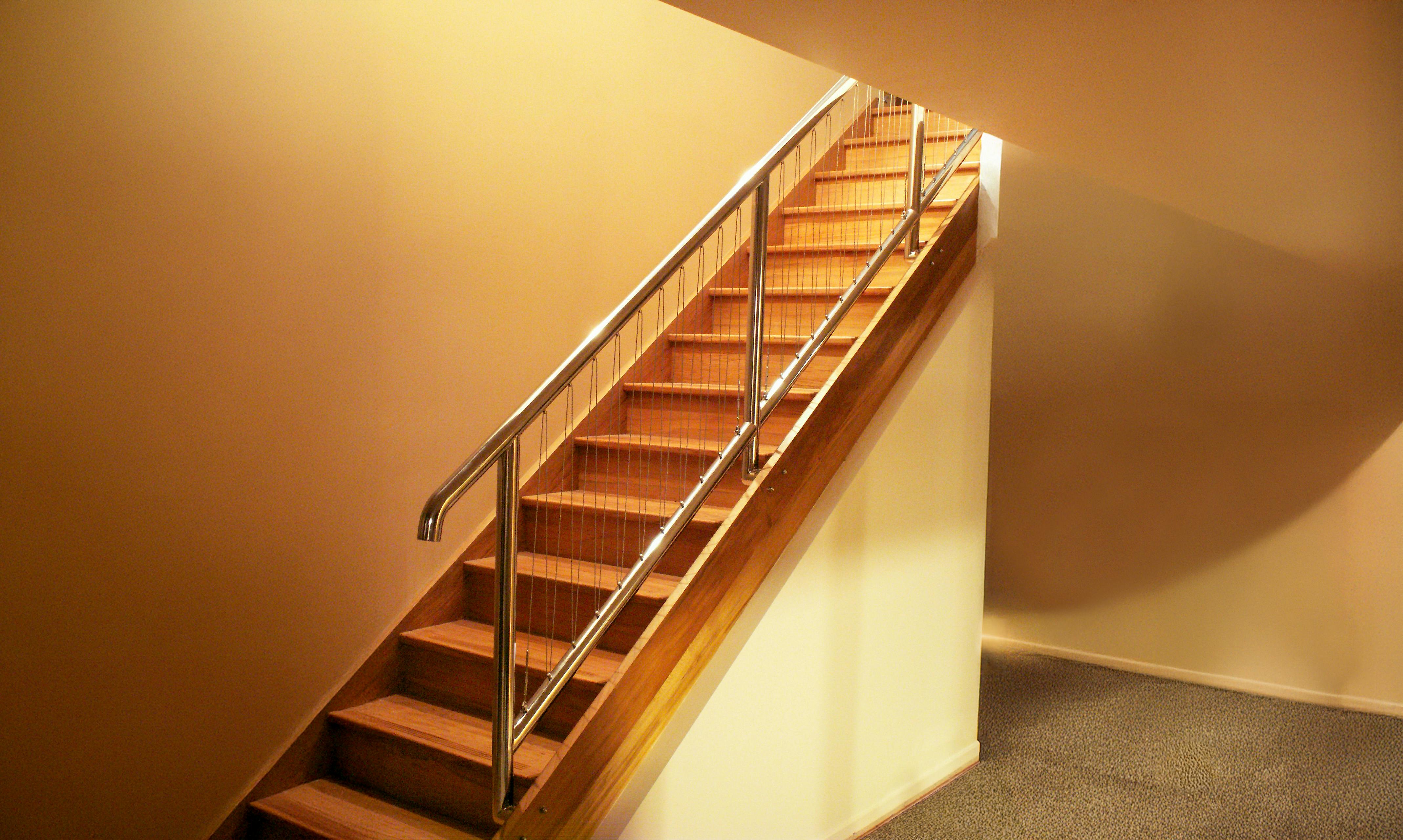

Check out these inspiring application images to see what a wire infill system could do for you balustrading project!

The drawings shown are only a guide. Anzor does not supply stainless metal framing, only the wire and wire components.
Balustrade specifications are recommendations only and may need to be adapted to suit your needs.

Click below for more information on balustrade types:

Vertical Wire Balustrading System for Metal Frames

Click here for Producer Statements, and installation information

Components for the Wire Infill
a. Anchoring the wire to the tube with the Anzor Eyelet. This is a proprietary product developed by Anzor. The eyelets are screwed into the tube so that they don't need to be welded, leaving a clean finish. There are two types: i. Eyelet used to fit M5 Jaw Turnbuckle for terminating wire. ii. Standard Anzor M6 Eyelet (use a M6 x 1mm pitch spiral point or gun tap to drill the holes for the eyelets.)
b. Wire. When the wire is swaged or crimped (NB: Producer Statement does not apply to crimped wire), use 2.5mm 7X7 Anzor Stainless steel wire rope.
c. Turnbuckles. When the wire is swaged, use an M5 Jaw/Swage Pipe Turnbuckle, standard When the wire is crimped (NB: Producer Statement does not apply to crimped wire) use an M5 Jaw/Jaw Pipe Turnbuckle. Use one at each end of the bay for improved tensioning - this ensures that the wires are taut. Wire to be tensioned to the specifications noted on the Producer Statement.

This is a proprietary product developed by Anzor. The eyelets are screwed into the tube so that they don't need to be welded, leaving a clean finish.

There are two types:

i. Eyelet used to fit M5 Jaw Turnbuckle for terminating wire.

ii. Standard Anzor M6 Eyelet (use a M6 x 1mm pitch spiral point or gun tap to drill the holes for the eyelets.)

When the wire is swaged or crimped (NB: Producer Statement does not apply to crimped wire), use 2.5mm 7X7 Anzor Stainless steel wire rope.

When the wire is swaged, use an M5 Jaw/Swage Pipe Turnbuckle, standard

When the wire is crimped (NB: Producer Statement does not apply to crimped wire) use an M5 Jaw/Jaw Pipe Turnbuckle.

Use one at each end of the bay for improved tensioning - this ensures that the wires are taut. Wire to be tensioned to the specifications noted on the Producer Statement.

Stainless Turnbuckles Used for Balustrade

Vertical Wire Infill System within a Timber frame

Click here for Producer Statements, and installation information

Components for the Wire Infill
a. Anchoring the wire to the tube with the Anzor Eyelet. This is a proprietary product developed by Anzor. The eyelets are screwed into the timber frame. There are two types: i. 14g Anzor Timber Eyelet. ii. Eyelet used for fit M5 Jaw Turnbuckle for terminating wire. Use the Anzor Socket Tool for installation.
b. Wire. When the wire is swaged or crimped (NB: Producer Statement does not apply to crimped wire), use 2.5mm 7X7 Anzor Stainless steel wire rope.
c. Turnbuckles. When the wire is swaged, use an M5 Jaw/Swage Pipe Turnbuckle, standard When the wire is crimped (NB: Producer Statement does not apply to crimped wire) use an M5 Jaw/Jaw Pipe Turnbuckle. Use one at each end of the bay for improved tensioning - this ensures that the wires are taut. Wire to be tensioned to the specifications noted on the Producer Statement.

This is a proprietary product developed by Anzor. The eyelets are screwed into the timber frame. There are two types:

i. 14g Anzor Timber Eyelet.

ii. Eyelet used for fit M5 Jaw Turnbuckle for terminating wire.

Use the Anzor Socket Tool for installation.

When the wire is swaged or crimped (NB: Producer Statement does not apply to crimped wire), use 2.5mm 7X7 Anzor Stainless steel wire rope.

When the wire is swaged, use an M5 Jaw/Swage Pipe Turnbuckle, standard

When the wire is crimped (NB: Producer Statement does not apply to crimped wire) use an M5 Jaw/Jaw Pipe Turnbuckle.

Use one at each end of the bay for improved tensioning - this ensures that the wires are taut. Wire to be tensioned to the specifications noted on the Producer Statement.

Complete numbered steps in the enquiry form below to receive a quote within 2 business days. Review and edit component quantities carefully before submitting.

The approximate number of fittings and length of wire required are based on 900mm x 1000mm with 90mm eyelet spacing, as shown in our PS1 drawings.
