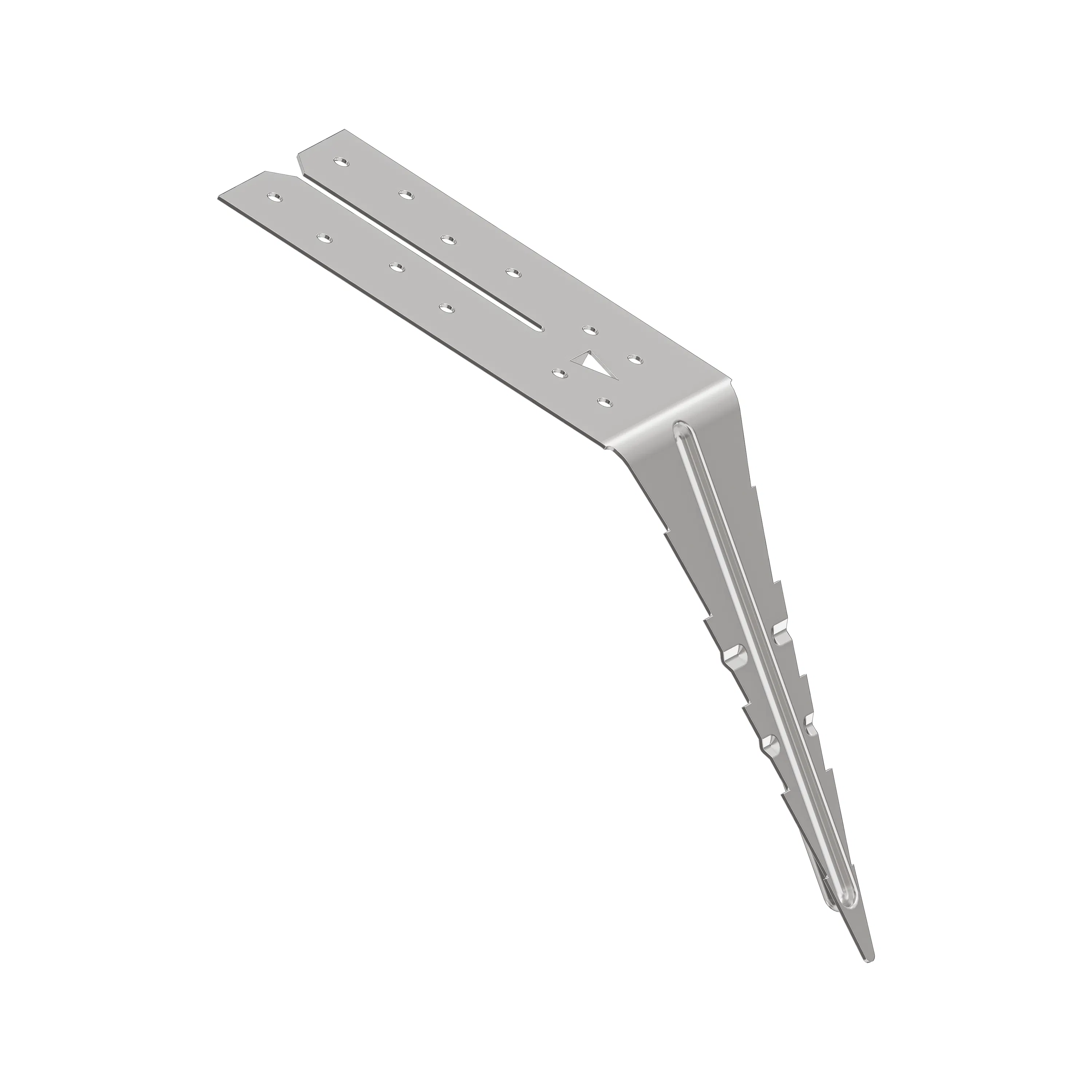

304 Bottom Plate Fixing Anchor
ZBBPFA
In Stock
|
|

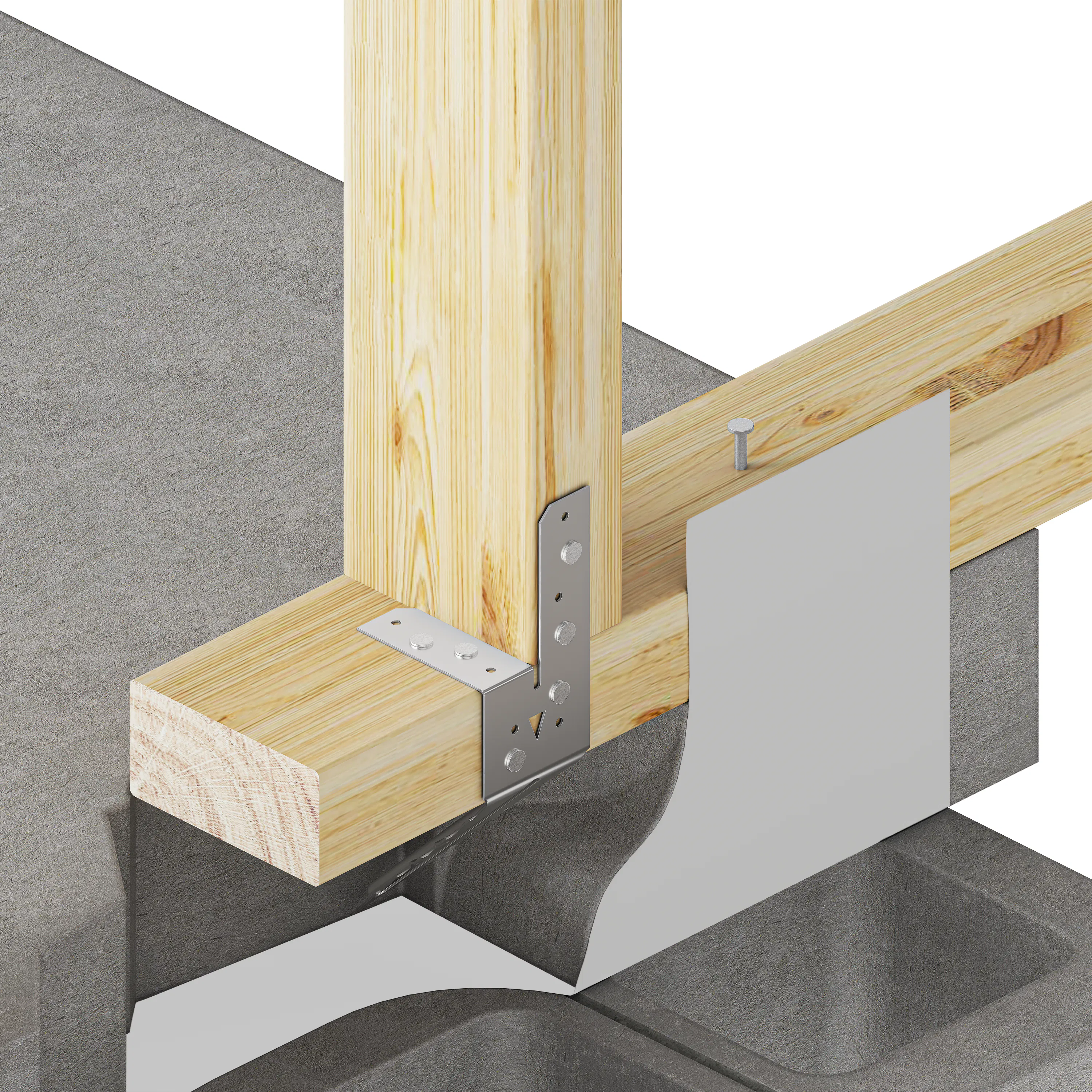

Ingenious product designed to fix timber wall frames down onto concrete slab floors. Bottom Plate Anchors are temporarily fixed to the perimeter boxing at 900mm centres max. prior to the concrete pour, and folded around the bottom plate when the frames are located. LUMBERLOK Stainless Steel Product Nails 30mm x 3.15mm diameter are then applied to secure the frames in position. Alternative to concrete bolts, or the drilling of bottom plates and lifting of frame over cast-in steel rods.
Refer below for Product Data and Installation.
Materials: 0.9mm Stainless Steel 304
Finish: Stainless Steel

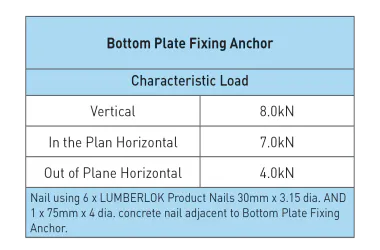

Load Table
|
304 Bottom Plate Fixing Anchor
ZBBPFA
In Stock
|
|
Ingenious product designed to fix timber wall frames down onto concrete slab floors. Bottom Plate Anchors are temporarily fixed to the perimeter boxing at 900mm centres max. prior to the concrete pour, and folded around the bottom plate when the frames are located. LUMBERLOK Stainless Steel Product Nails 30mm x 3.15mm diameter are then applied to secure the frames in position. Alternative to concrete bolts, or the drilling of bottom plates and lifting of frame over cast-in steel rods.
Refer below for Product Data and Installation.
Materials: 0.9mm Stainless Steel 304
Finish: Stainless Steel
Load Table
