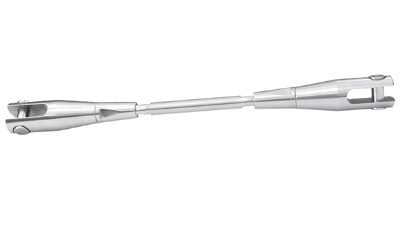

• Made from 316 stainless steel, these stainless tension rod forks offer excellent resistance to corrosion.
• Available form M6 to M64 and can be used in a wide range of applications.
• Stainless steel is a 100% recyclable material, contributing to sustainability efforts.
• Enquire here

Tait Building, Christchurch

Opus Architecture and Aurecon Structural Engineers

BNZ Tower, Wellington

Contractor: Thermosash Commercial Ltd.

Location: Wellington, New Zealand

Product supplied - Internal rod supports for bridges

RDS Project Pukekohe, Auckland

Briscoes, Pukekohe Mega Centre

Location: Auckland, New Zealand

Product supplied - Tension Rod System

Sovereign House, Auckland

Contractor: Thermosash Commercial Ltd.

Location: Smales Farm, Auckland, New Zealand

Product supplied - Tension Rod Bracing for sunscreen

Tawa Church, Wellington

Contractor: Tectonus

Location: Wellington, New Zealand

Product supplied - Tension Rods

316 Stainless Steel (or 2205 Stainless Steel) Tension Rods are tension only braces, with tensile strength data available but not dynamic performance data. At the Tawa Church, Wellington, a Tectonus Device (not supplied by Anzor) was used with Anzor Stainless Steel Tension Rods for seismic load demand.

Tension-only rod braces, whilst can be considered as a lateral load resisting system, cannot provide energy dissipation. Therefore the ductility factor as per code is 1.0-1.25. See the Tectonus Device.

By adding the Tectonus device, the ductility factor increases to 3.0-4.0 as such the seismic load demand could be reduced to about 1/3, providing significant cost savings for the gussets, welds, foundations, etc (in particular for retrofitting projects). As well as up front cost savings, there will be significant post event cost savings given no replacement is required, and the building would be fully resilient. It should be noted that the self-centering aspect of Tectonus device is a necessity for tension-only system, as other dampers with no re-storying capacity won't be applicable given the slender rods have no compression resistance to close the damper after its extension.

Check out here for more info.

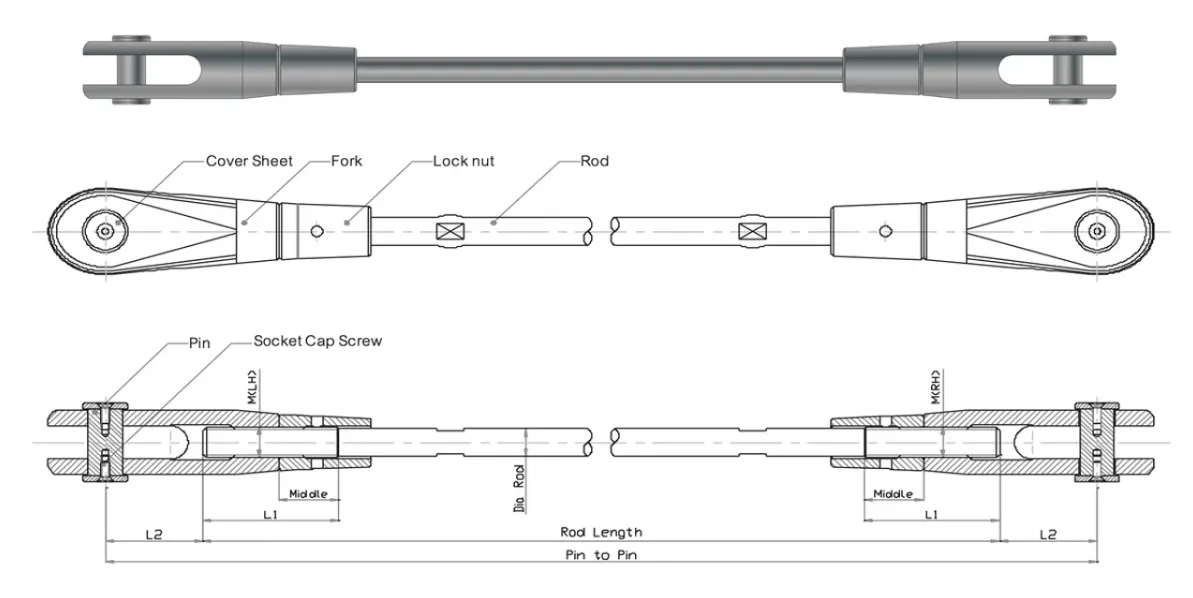

Technical Data

Fork : Casting material : AISI316, EN 1.4408
Lock Nut : Casting material : AISI316, EN 1.4408
Pin : M6-M22 : Rod AISI316
      : M24-M100 : Rod 17-4 PH
Surface treatment : “M.F.” (Matte finished) M16-M45
                               “G.F.” (Gloss finished) M56-M100
TAP : ST03.3-1, ST03.3-2

Data Sheet - FS3A(R) SRS Fork - 316

Data Sheet - FS3B(L) SRS Fork - 316
